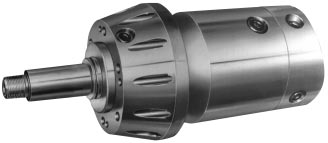

Fixed Displacement Motor A4FP/2A4FP



This axial piston motor with fixed displacement A4FP (singlemotor) respectively 2A4FP (Back to Back-Motor) has been designed for use in open and closed circuits in shipbuilding applications.

Output speed is proportional to input flow and inversely proportional to displacement. Drive torque increases with the pressure drop across the unit.

The Back to Back-Motor exists of two identical rotary groups each with displacement according size.

Careful selection of bearing concept facilitate absorbing of high axial and radial loads in case of propeller drive.

Further applications may be: cargo pump drives, bow- thruster drives, van-drives.

Прикрепленный файлРазмер
re91125.pdf259.08 кб
