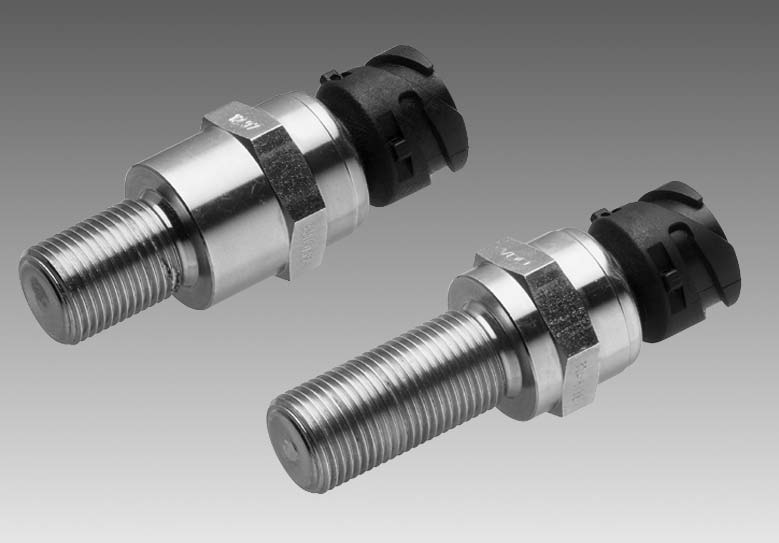

Inductive Speed Sensor ID


The "ID" inductive speed sensor is used for contact-free measurement of the rotary speeds of Brueninghaus Hydromatik hydraulic pumps of type A4VTG (see RE 92012) and hydraulic motors of types A2FM (see RE 91001), A2FE (see RE 91008), A6VM (see RE 91604) or A6VE
(see RE 91606).

The sensor is installed in a special mounting hole in the housing of the axial piston pump/motor and detects the speed on an internal gear wheel or comparable component made of ferromagnetic material.
