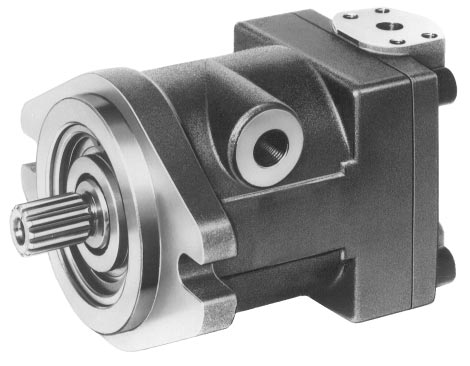

Fixed Displacement Motor A4FM

Fixed displacement motor A4FM is an axial piston motor of swashplate design suitable for use in both open and closed circuits in high pressure ranges.

Output speed is proportional to input flow and inversely proportional to motor displacement.

Output torque increases with the pressure drop across the motor between the high and low pressure sides.

This motor is suitable for both industrial and mobile applications.

Special Features

  • Proven A4 rotary group
  • Long service life
  • Favourable power/weight ratio
  • Compact design for special applications where A2FM cannot be applied
  • Optimum efficiencies
  • Economic design
  • SAE mounting flange
